Precise flow measurement in beverage dispensing
Precise dosing, mixing and reliable portion control for soft drinks, beer and draft beverages, syrups and water. Fully ISO and NSF certified for food standards, our flowmeters can handle them all.
Why Digmesa for beverage dispensing?
Our flowmeters are integrated in beverage dosing, mixing, dispensing and drafting appliances worldwide, delivering consistently reliable measurement results. They are fully certified for food applications, all at a prompt availabilty.
Typical applications
Whether in the hotel industry or in the restaurant and catering business: wherever concentrates are mixed, mixing ratios controlled and beverages such as beer, wine, syrups, water and soft drinks are dosed, dispensed and quantities documented, we are your experienced partner.
Nano DM60
Flow
0.05 - 0.40 l/min
Temp.
-10°C to 65°C
14°F to 149°F
Pressure
0.0 - 5.0 bar at 20°C
0 - 73 psi at 68°F
—
compact
—
cost-effective
—
freely selectable mounting position
Nano Brass FH G18 BSP
Flow
0.04 - 0.99 l/min
Temp.
0°C to 100°C
32°F to 212°F
Pressure
0.0 - 20.0 bar at 20°C
0 - 290 psi at 68°F
—
Lead-free brass housing
—
Ultrahigh measurement resolution
—
Flexible mounting position
Nano Brass FHC AVS Roemer
Flow
0.04 - 0.99 l/min
Temp.
0°C to 100°C
32°F to 212°F
Pressure
0.0 - 20.0 bar at 20°C
0 - 290 psi at 68°F
—
lead-free brass housing
—
AVS Römer 4mm
—
high measurement resolution
Nano Inox FH G18 BSP
Flow
0.04 - 0.99 l/min
Temp.
0°C to 100°C
32°F to 212°F
Pressure
0.0 - 20.0 bar at 20°C
0 - 290 psi at 68°F
—
stainless steel housing
—
compact
—
robust design
FHKSC PBT
Flow
0.03 - 1.06 l/min
Temp.
0°C to 65°C
32°F to 149°F
Pressure
0.0 - 3.0 bar at 20°C
0 - 44 psi at 68°F
—
compact
—
cost-effective
—
reliable
FHKSC PVDF
Flow
0.03 - 0.80 l/min
Temp.
0°C to 65°C
32°F to 149°F
Pressure
0.0 - 3.0 bar at 20°C
0 - 44 psi at 68°F
—
compact
—
cost-effective
—
reliable
Nano Flex
Flow
0.25 - 3.00 l/min
Temp.
0°C to 60°C
32°F to 140°F
Pressure
0.0 bar at 20°C
0 psi at 68°F
—
Sealed cable
—
Reliable in demanding applications
—
Cost-effective
FH
Flow
0.04 - 4.20 l/min
Temp.
0°C to 100°C
32°F to 212°F
Pressure
0.0 - 20.0 bar at 20°C
0 - 290 psi at 68°F
—
lead-free brass housing
—
high pressure resistance
—
robust design
FHK Arnite
Flow
0.03 - 3.19 l/min
Temp.
0°C to 65°C
32°F to 149°F
—
modular
—
flexible
—
u-shaped flow path
FHK PVDF
Flow
0.04 - 1.93 l/min
Temp.
0°C to 100°C
32°F to 212°F
Pressure
0.0 - 20.0 bar at 20°C
0 - 290 psi at 68°F
—
Modular
—
Flexible
—
u-shaped flow path
FHKU
Flow
0.04 - 4.22 l/min
Temp.
0°C to 65°C
32°F to 149°F
Pressure
0.0 - 20.0 bar at 20°C
0 - 290 psi at 68°F
—
modular
—
flexible
—
straight flow path
FHKU John Guest
Flow
0.04 - 4.22 l/min
Temp.
0°C to 65°C
32°F to 149°F
Pressure
0.0 - 10.0 bar at 20°C
0 - 145 psi at 68°F
—
modular
—
JG Speedfit
—
straight flowpath
FHKU external LCD
Flow
0.04 - 4.22 l/min
Temp.
0°C to 60°C
32°F to 140°F
Pressure
0.0 - 20.0 bar at 20°C
0 - 290 psi at 68°F
—
battery-powered display
—
external LCD
FHKU John Guest internal LCD
Flow
0.04 - 4.22 l/min
Temp.
1°C to 60°C
34°F to 140°F
Pressure
0.0 - 20.0 bar at 20°C
0 - 290 psi at 68°F
—
John Guest 3/8“ Arnite
—
battery-powered internal LCD
CombiSensor digital
Flow
0.03 - 8.30 l/min
Temp.
0°C to 65°C
32°F to 149°F
Pressure
0.0 - 10.0 bar at 20°C
0 - 145 psi at 68°F
—
Measures electrical conductivity, temperature and flow rate
—
Unique
CombiSensor analog
Flow
0.03 - 3.91 l/min
Temp.
0°C to 65°C
32°F to 149°F
Pressure
0.0 - 10.0 bar at 20°C
0 - 145 psi at 68°F
—
Measures electrical conductivity, temperature and flow rate
—
Unique

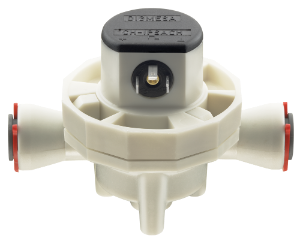

FF
Flow
0.34 - 11.50 l/min
Temp.
0°C to 65°C
32°F to 149°F
Pressure
0.0 - 5.5 bar at 20°C
0 - 80 psi at 68°F
—
freely selectable mounting position
—
can be opened and closed without tools
—
optional foam detection available
FM 15
Flow
2.83 - 25.30 l/min
Temp.
0°C to 65°C
32°F to 149°F
Pressure
0.0 - 12.0 bar at 20°C
0 - 174 psi at 68°F
—
large dynamic range
—
high durability
—
high flow rates
EPI PEEK
Flow
0.06 - 5.35 l/min
Temp.
0°C to 65°C
32°F to 149°F
Pressure
0.0 - 10.0 bar at 20°C
0 - 145 psi at 68°F
—
positive displacement meter
—
for viscous liquids
—
accurate and cost-effective
EPI Arnite
Flow
0.06 - 5.35 l/min
Temp.
0°C to 65°C
32°F to 149°F
Pressure
0.0 - 7.0 bar at 20°C
0 - 102 psi at 68°F
—
positive displacement meter
—
for viscous liquids
—
accurate and cost-effective
EPI-Mini
Flow
0.05 - 2.50 l/min
Temp.
0°C to 20°C
32°F to 68°F
Pressure
0.0 - 0.6 bar at 20°C
0 - 9 psi at 68°F
—
functional model (can be specified)
—
measures medias with various viscosities
—
even under changing temperature conditions
Display FC Pro
—
backlit LCD
—
compatible with all Digmesa flow sensors
—
customizable on request
