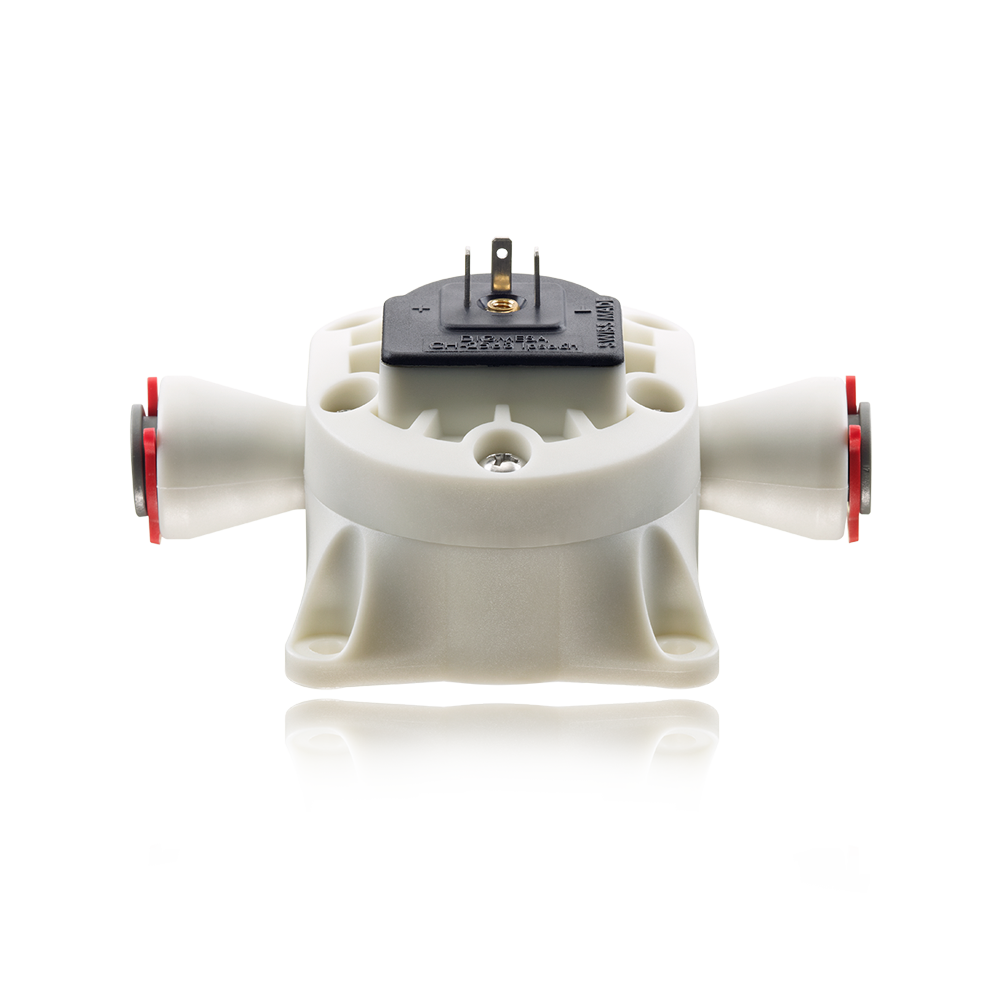

EPI Arnite

The EPI flowmeter is specifically suitable for fluid flow rate measurement of highly viscose media such as syrup, oil or detergent concentrates. Thanks to its special design and the epicycloid wheels, the EPI flowmeter is highly precise and allows extremely accurate flow measurement with minimal pressure loss.

Specific applications: Highly viscous media, high temperatures, high flow rates with low pressure loss and good chemical resistance. Hose diameters 3/8” (9.5mm) can be directly connected.

Keypoints

  • positive displacement meter
  • for viscous liquids
  • accurate and cost-effective

Specification

Article Number

930-0502-V01

Flowrate

overall

0.06 - 5.35 l/min

Nozzle Size

7.0mm

Applications

Syrup Measurement, Vending Machines, Soft Drink Monitoring

Ports

EPI G14 Internal thread

Temperature

0°C to 100°C 32°F to 212°F

Materials

VMQ (Silikon) PERTEC UP VMQ 70.501-01, EPDM O-Ring 70.503-00, PEEK 150 GL 30, PEEK 450 G, PBT 35%GF (Arnite TV4 270), Stainless steel 1.4435

Pressure

0.0 - 7.0 bar at 20°C 0 - 102 psi at 68°F

For samples please contact our sales team.
