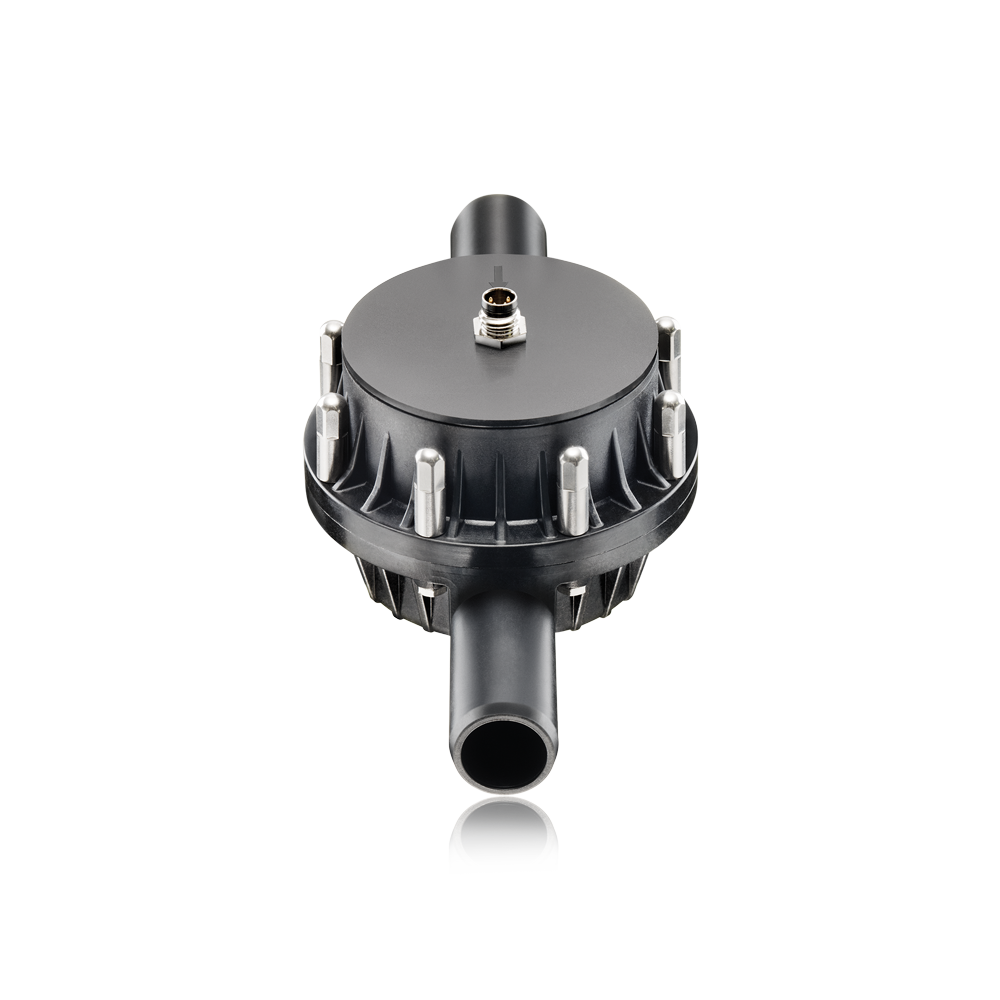

FMIG Arnite

The FM Flowmeter is a general-purpose precision device. It measures with constant precision and guarantees maximum accuracy in the measurement of fluid volumes. Its integrated electronic pulse emitter, plus the forces acting centrally upon its vane give an additional guarantee for a practically unlimited useful life. By means of its multi-jet metering principle, a very high degree of accuracy is achieved and for this reason it is employed in many different industrial sectors.
Special features: High accuracy. Sturdy bearing. Impulses can be doubled (turbine with 4 magnets)

Keypoints

  • large dynamic range
  • high durability
  • high flow rates

Specification

Article Number
935-1500-2
Flowrate
0.24 - 6.80 l/min
Output Signal
Open collector NPN
Voltage Supply
+3.8 to +24 VDC
Temperature
0°C to 65°C 32°F to 149°F
Materials
PBT 35%GF (Arnite TV4 270), VMQ (Silikon) PERTEC UP VMQ 70.501-01, EPDM O-Ring 70.503-00, PVDF, Stahl verzinkt-blau
Pressure
0.0 - 20.0 bar at 20°C 0 - 290 psi at 68°F
